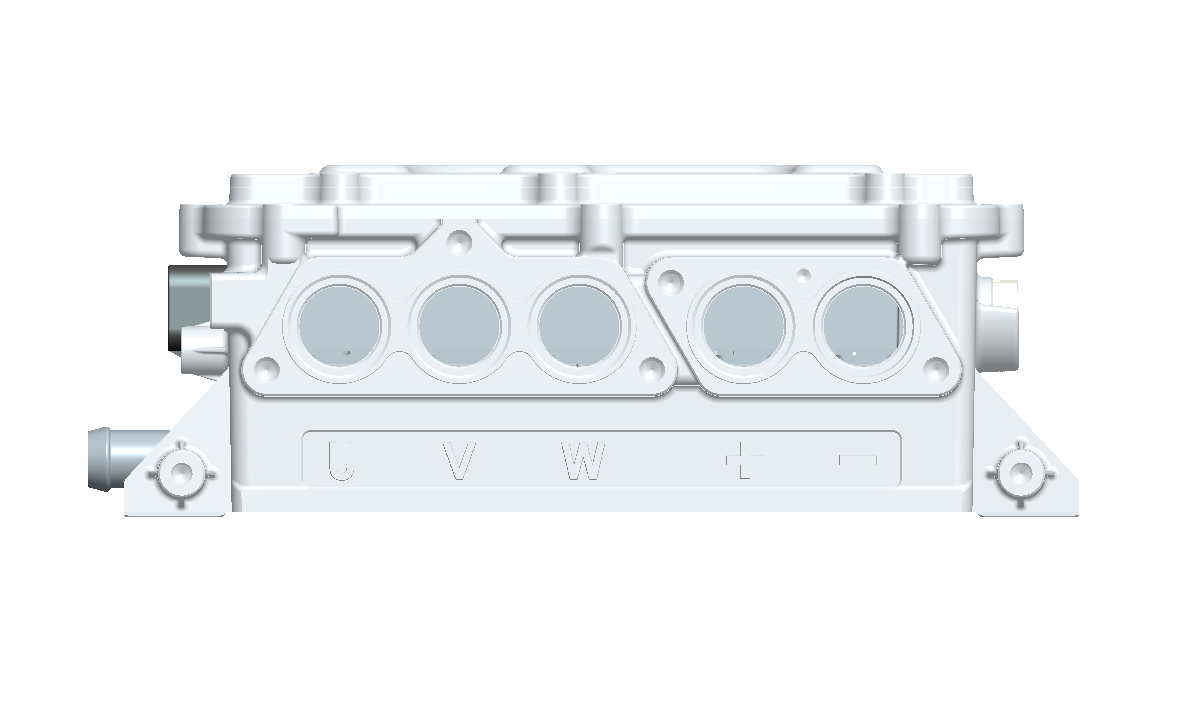

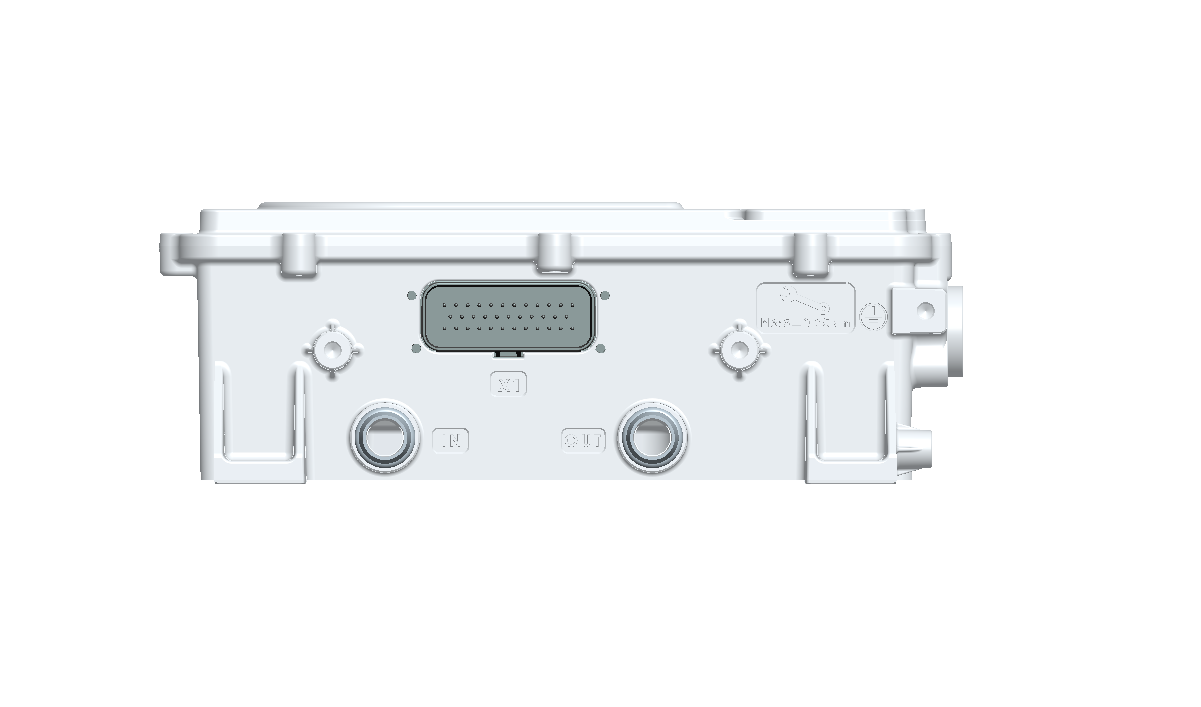

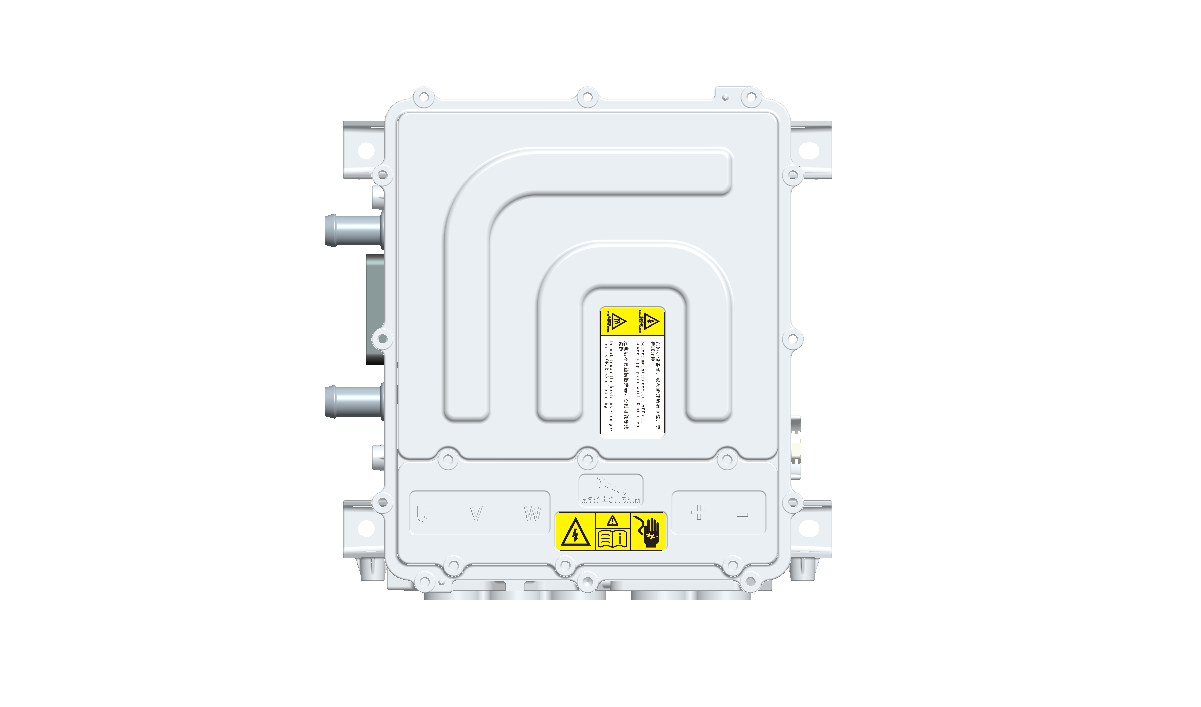

1. Introduction of product function
l MCU is short for Motor Control Unit, namely, the motor controller, which is the control center of the entire power system. It can control IGBT by receiving command of VCU or HCU, or receiving the controller internal sensor signal and motor feedback speed signal, thus realizing the control over the motor.
l GCU is short for Generator Control Unit, namely, the generator controller, which is the control center of the entire power system. It can control IGBT by receiving command of VCU or HCU, or receiving the controller internal sensor signal and motor feedback speed signal, thus realizing the charging function.
2. Introduction of product performance
l Feature:PM30B1B
l Input voltage range(V):200-420
l Maximum output current(A):270
l Maximum capacity(kVA):110
l Cooling method: Liquid cooling
l Rated power for match motor(kW):20/40
3. Advantages of product solution
l The main control chip adopts the high-performance 32-digit dual-core MCU, which conforms to ASIL-D grade of ISO26262 standard
l Software adopts AUTOSAR framework and control algorithm has been developed by MATLAB model.
l Support CCP, UDS agreement, OTA and UDS bootloader
l It is equipped with advanced application algorithms including dead-time compensation, MTPA, weak magnetic, decoupling, over-modulation, automatic frequency conversion, blocking and anti-slip slope
l It has wake up and hibernation function, lowering down the static power consumption of standby and reducing the battery power consumption.
l It has comprehensive fault diagnosis and protection functions.
4. Product application scope
l The generator controller or drive motor controller of N1 type generator controller for pure electric or range extender models
